Carbon fiber drive shaft is a transmission device made of high-performance carbon fiber material, which plays an important role in modern industry. As a lightweight and high-strength transmission component, carbon fiber drive shafts are increasingly used in the automotive industry. The component is manufactured from carbon fiber composite materials, achieving excellent mechanical properties and durability through precise design and advanced manufacturing processes. The carbon fiber transmission shaft is light in weight and high in rigidity, which can effectively reduce the non-suspension mass of the vehicle, thereby improving the vehicle's dynamic response and fuel economy. In addition, its excellent fatigue resistance makes it suitable for applications that are subject to cyclic loads, such as racing cars and high-performance sports cars. In view of these characteristics of carbon fiber drive shafts, it is gradually replacing traditional metal drive shafts and becoming the preferred material in the automotive industry.
Product Description:
Drive shafts are usually composed of carbon fiber pipes, metal joints, bearings and seals. Carbon fiber pipe is its core part. It is formed by solidifying carbon fiber prepreg under high temperature and pressure. It has extremely high strength and rigidity and is light in weight. Metal joints are used to connect carbon fiber pipes to other mechanical components, while bearings and seals ensure the smooth operation and sealing of the drive shaft.
Application areas:
Carbon fiber drive shafts are widely used in automobiles, motorcycles, aerospace, robots, precision machinery and other fields. In the automotive industry, it is used to manufacture key components such as drive shafts, suspension systems, and braking systems to improve vehicle performance and safety. In the aerospace field, carbon fiber drive shafts are used in aircraft landing gear, tail and engine components to reduce aircraft weight and improve fuel efficiency.
development trend:
With the continuous advancement of new material technology and the popularization of lightweight design concepts, the development of drive shafts shows the following trends:
1. Lightweight: By optimizing the design and using higher-performance carbon fiber materials, the weight of the drive shaft is further reduced.
2. High strength: By improving the manufacturing process and material formula, the strength and rigidity of the drive shaft are improved.
3. Multi-functional: In addition to basic transmission functions, it also integrates functions such as sensors to achieve intelligent monitoring and fault warning.
4. Customized services: Provide personalized customized services according to customer needs, including drive shafts of different specifications, shapes and performances.
Manufacturing process:
In terms of manufacturing technology, the production process of carbon fiber drive shafts includes prepreg preparation, winding or pultrusion, curing, and subsequent mechanical processing and surface treatment. The choice of prepreg directly affects the performance of the final product, and the winding or pultrusion process ensures the continuity and uniform distribution of fibers to obtain the best mechanical properties. The curing process is carried out in a high temperature and high pressure environment to ensure complete curing of the material and structural stability. Mechanical processing and surface treatment are to meet precise assembly requirements and improve the corrosion resistance and wear resistance of the drive shaft.
1. Design: Carry out detailed design based on customer needs and product application scenarios, including structural design, material selection and process planning, etc.
2. Material preparation: Select high-quality carbon fiber prepreg and metal materials, and perform necessary pretreatment.
3. Forming: Put the carbon fiber prepreg into the mold and solidify it under high temperature and high pressure to form the required tubular structure.
4. Mechanical processing: The formed carbon fiber pipe is subjected to mechanical processing such as cutting, drilling, and milling to meet the accuracy and shape requirements of the product.
5. Assembly: Assemble the processed carbon fiber pipes with metal joints, bearings, seals and other components to form a complete drive shaft.
6. Inspection and testing: Conduct strict quality inspection and performance testing on the completed drive shaft to ensure that the product meets the design requirements and customer needs.
Customized styles:
According to different customer and application requirements, drive shafts can provide customized services. Customers can choose appropriate carbon fiber materials and manufacturing processes based on specific performance indicators, size specifications and usage environments. In addition, through optimized design, the weight and cost of the drive shaft can be further reduced and its market competitiveness improved.
Drive shafts can be customized to meet customer specific needs, including different sizes, shapes and capabilities. For example, customers can choose carbon fiber pipes of different diameters and lengths to adapt to different transmission needs; they can choose different metal joint types and materials to achieve compatibility with other mechanical components; they can also choose different surface treatments and colors , to meet personalized aesthetic needs.
What auto parts can be made:
In the automotive field, drive shafts can be used in the following areas:
In the field of auto parts, drive shafts can be used in multiple key components, including but not limited to drive shafts, half shafts, universal joints, etc. Due to its lightweight and high-performance characteristics, drive shafts play an important role in improving vehicle handling, reducing energy consumption, and enhancing the structural strength of the entire vehicle. As the automotive industry's requirements for environmental protection and energy efficiency continue to increase, the market demand for carbon fiber drive shafts is expected to continue to grow.
1. Transmission shaft: used to connect the engine and gearbox, transmit power to the wheels, and improve vehicle performance and fuel economy.
2. Suspension system: used to connect the body and wheels, absorb road vibrations and impacts, and improve ride comfort.
3. Braking system: used to connect the brake disc and brake caliper to transmit braking torque and ensure driving safety.
4. Exhaust system: used to connect the engine and exhaust pipe, guide exhaust gas out of the car, and reduce noise and emissions.
5. Other components: such as steering wheels, seat frames, etc. can also be made of carbon fiber materials to reduce weight and improve strength.
In short, as a high-performance transmission device, carbon fiber transmission shaft has broad application prospects in modern industry. With the continuous advancement of new material technology and the popularization of lightweight design concepts, its development trend will be towards lighter, stronger and smarter products. At the same time, customized services will also become one of the important needs of the market. In the automotive field, the application of transmission shafts will further improve vehicle performance and safety and promote the sustainable development of the automotive industry.

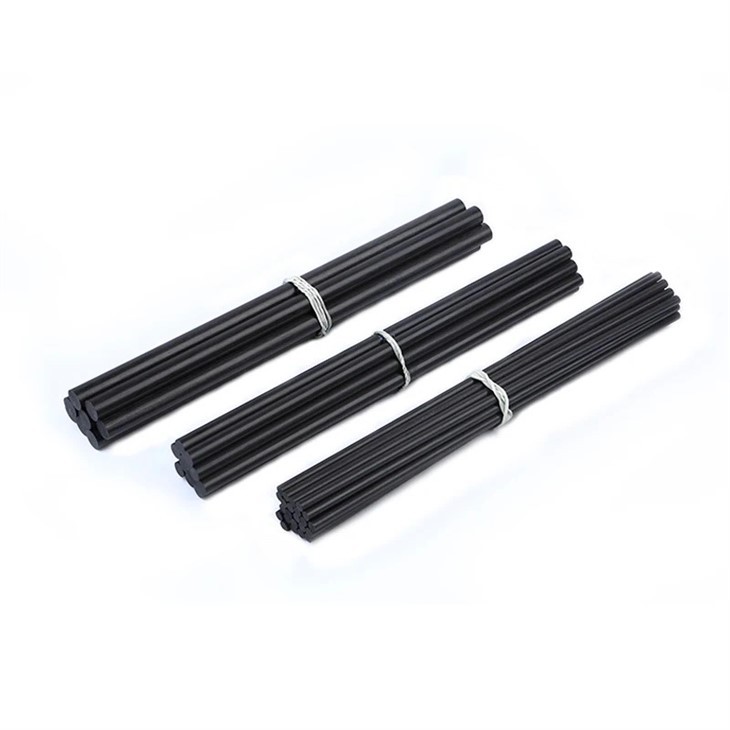

Hot Tags: twill solid carbon fiber rod, China, factory, suppliers, manufacturers, wholesale
