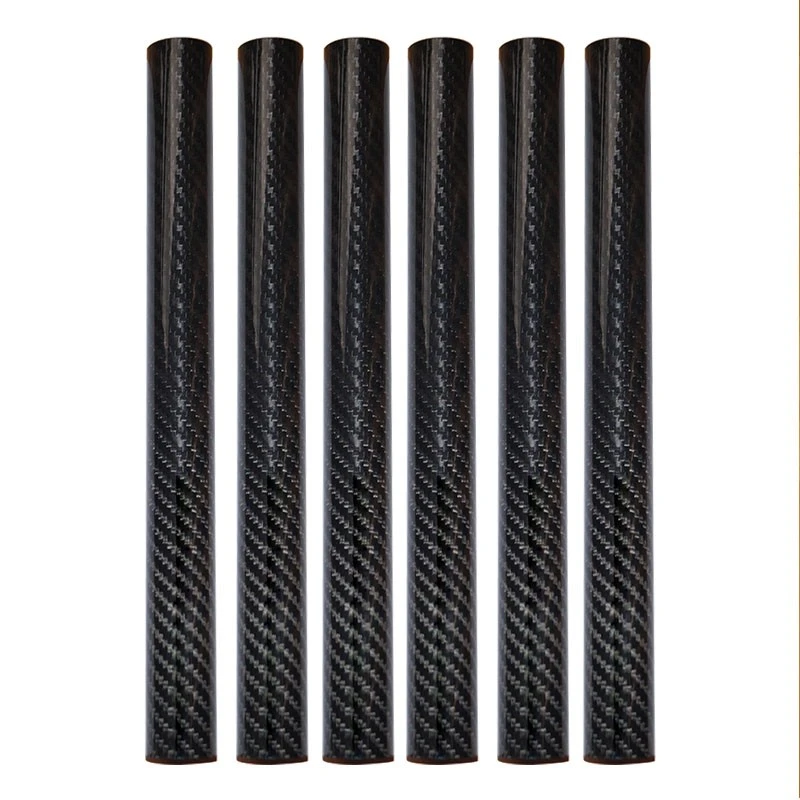

Carbon Fiber Tube For Drone

Advantages and characteristics of Carbon fiber tubes(CF tubes)
First of all it owns ultra-high specific strength and high specific modulus. The most prominent characteristics of CF tubes are their ultra-high specific strength and high specific modulus. The strength of CF itself can reach more than 3000mpa, which is 6-12 times that of steel, and the density is less than a quarter of that of steel. This means that while ensuring structural strength, it can greatly reduce its own weight. Taking the aerospace field as an example, aircraft weight reduction is of great significance to performance improvement, and this characteristic of CF tubes perfectly meets this demand. The high specific modulus allows CF tubes to have excellent deformation resistance when subjected to external forces, and can effectively maintain structural stability. When the drone is flying, especially at high speeds or encountering complex airflows, the CF tube can ensure the integrity of the fuselage structure and avoid deformation that affects flight performance.

Second, Low density and lightweight
Low density makes CF tubes extremely light, which is of extraordinary value in the field of drones. The weight of a drone is directly related to the flight time and actual load capacity. Using CF tubes to build drone fuselages, wings, arms and other components can significantly reduce the weight of the entire machine. Like the DJI Mavic 3 Pro, its CF gimbal system improves the image stabilization accuracy to ±0.02°, which is 10 times higher than that of traditional metal brackets. At the same time, it reduces the weight of the gimbal, which greatly improves the flight performance of the drone. Weight reduction means that the drone's battery life is extended under the same power; if the battery life remains unchanged, more equipment can be carried, such as high-definition cameras, sensors, etc., to expand the application range of drone functions.

Third, excellent corrosion resistance
CF tubes have good tolerance to most chemical substances. Whether in a humid environment or in the face of corrosive media such as acids and alkalis, their performance is very stable. This feature allows drones to operate normally in various harsh environments. When agricultural plant protection drones spray pesticides, the pesticides are corrosive, and CF tubes can effectively resist erosion and extend the service life of drones; for drones used for marine monitoring, in high-salinity marine environments, CF tubes can prevent seawater corrosion and ensure long-term stable operation of drones.

Fourth, excellent fatigue performance
CF tubes have excellent fatigue resistance, and even after multiple cyclic loads, they rarely crack or damage. When a drone is flying, the fuselage parts are continuously subjected to various stresses, such as air resistance during flight, impact force during takeoff and landing, etc. CF tubes can withstand these repeated stresses, ensure the safety and reliability of long-term use of drones, and reduce the maintenance and replacement costs caused by fatigue damage.

Fifth, dimensional stability and low expansion coefficient
CF tubes have excellent dimensional stability, and their dimensions change very little under different temperature and humidity conditions. At the same time, their thermal expansion coefficient is low, which prevents the drone from structural deformation due to thermal expansion and contraction when flying in an environment with large temperature changes, affecting flight accuracy and stability. For example, when a drone is flying at high altitude, the temperature is low, and the temperature rises after being exposed to the sun on the ground. CF tubes can adapt to this temperature change and maintain the integrity of the drone structure.
Sixth, strong designability
In production, CF tubes can be made into profiles of various shapes and specifications through different molding processes and mold designs, such as round tubes of different diameters, square tubes of different sizes, etc., to meet the structural requirements of different parts of drones. It can also optimize the fiber arrangement direction inside the CF tube according to the force characteristics of the drone to further improve the mechanical properties. In the arm part of the drone, the fiber arrangement direction is reasonably designed to enhance the tensile and bending strength and improve the arm's carrying capacity.

Application in the field of drones
1. Fuselage structure
CF tubes are widely used in the manufacture of drone fuselage structures. Because of their light weight and high strength, they can reduce the weight of the fuselage to the greatest extent while ensuring the strength of the fuselage, thereby improving the flight performance of the drone. The XAG P100 2024 agricultural drone uses a full CF fuselage, which increases the spraying efficiency by 40% and the daily operation volume exceeds 300 acres. For some high-end aerial photography drones, the CF fuselage not only reduces weight, but also reduces the vibration of the fuselage, providing a more stable shooting platform for high-definition cameras and improving the quality of shooting. At the same time, the corrosion resistance of CF tubes can protect the fuselage from erosion in complex environments and extend the service life of drones.
2. Wings and arms
Wings and arms are key components of drones and need to have sufficient strength and stability. The high specific strength and high specific modulus of CF tubes make them ideal materials for wings and arms. When a drone is flying, the wings and arms are subjected to huge aerodynamic and inertial forces. CF tubes can cope with these forces well and ensure the structural safety of the wings and arms. Its lightweight characteristics can also reduce the weight of the wings and arms, reduce the energy consumption of the drone, and improve flight efficiency. In some long-flight drones, using CF tubes to make wings and arms can increase the drone's range.
3. Gimbal system
The gimbal system is crucial to the stability of drone shooting. CF tubes are widely used in drone gimbal manufacturing due to their light weight and good rigidity. The CF gimbal system of DJI Mavic 3 Pro has an image stabilization accuracy of ±0.02°, which is 10 times higher than that of traditional metal brackets. The lightweight CF gimbal can reduce the motor load, allowing the gimbal to adjust the angle more quickly and accurately, and capture clearer and more stable images. At the same time, the good damping characteristics of the CF tube can effectively absorb vibration, further improve the stability of the gimbal, and provide high-quality images and data for applications such as aerial photography and mapping.
4. Landing gear
The landing gear of the drone needs to have high strength and good buffering performance. The high strength of the CF tube can ensure that the landing gear can withstand huge impact force when the drone takes off and lands. Its energy absorption and shock resistance can effectively buffer the vibration of take-off and landing and protect the internal equipment of the drone. In addition, the lightweight design of the CF tube can reduce the weight of the landing gear and have little impact on the overall flight performance of the drone. In application scenarios such as logistics and distribution drones that require frequent take-off and landing, the advantages of CF landing gear are more obvious, which can improve the efficiency and safety of drone take-off and landing.

5. Power system support structure
The power system of drones, such as motors and propellers, requires a stable support structure. CF tubes can provide strong and stable support for the power system to ensure the stability of the power system when working. Because of its lightweight, it will not increase the extra burden on the power system, which is conducive to improving the power efficiency of drones. In some high-performance drones, optimizing the structural design of the CF tube can better transmit the force generated by the power system to the fuselage and improve the overall flight performance of the drone.
With the continuous advancement of science and technology, the application prospects of CF tubes in the field of drones will be broader. Its excellent performance will continue to promote the development of drone technology, enable it to play a greater role in more fields, and bring more convenience and innovation to people's lives and work.
