Welcome to wholesale our carbon fiber unidirectional prepreg manufacturer | custom ud prepreg. As one of the leading China manufacturers and suppliers, we will offer you the best quality products and excellent service. For more info, contact our factory now.

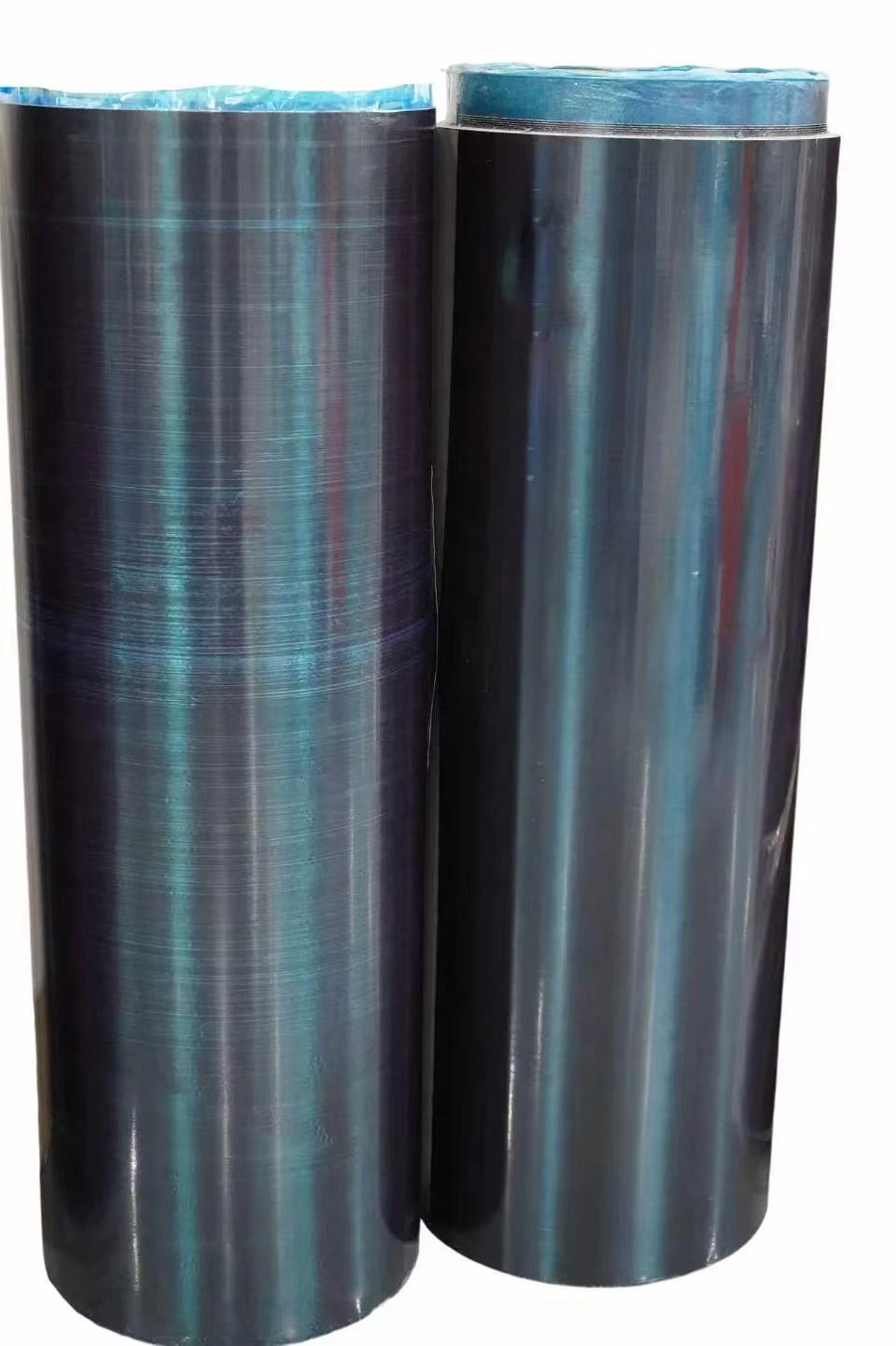

Carbon Fiber Unidirectional Prepreg is a composite reinforcement material made by impregnating aligned carbon fibers with a controlled amount of resin. The fibers run predominantly in one direction, allowing manufacturers to design composite structures with high stiffness and strength along the primary load path.
This material is suitable for manufacturers developing lightweight, high-performance components for industrial equipment, robotics, sporting goods, aerospace-related applications, and other advanced composite structures. Fiber type, resin system, fiber areal weight, resin content, and material width can be selected according to the requirements of the final component and manufacturing process.
We provide carbon fiber material solutions for customers seeking consistent material specifications, customized supply, and support for composite product development.
What Is Carbon Fiber Unidirectional Prepreg?
Carbon fiber unidirectional prepreg consists of continuous carbon fibers aligned in a single primary direction and pre-impregnated with a partially processed resin system. The resin holds the fibers in position and enables the material to be consolidated and cured during subsequent manufacturing.
Unlike woven carbon fiber prepreg, which has fibers interlaced in two principal directions, UD prepreg concentrates most of its reinforcing fibers along one axis. This structure allows engineers to place reinforcement where tensile loads, bending stresses, or stiffness requirements are greatest.
For example, a structural component primarily loaded along its length may benefit from 0° carbon fiber reinforcement. Additional plies at 90° or ±45° can be introduced to improve transverse strength, shear resistance, and multidirectional load performance.
The final mechanical properties depend on the carbon fiber grade, resin chemistry, fiber volume fraction, laminate design, curing conditions, and quality of the manufacturing process. Material selection should therefore be based on the complete composite design rather than fiber strength alone.
Key Features of Carbon Fiber UD Prepreg
1. Directional Strength and Stiffness
The aligned fiber structure provides efficient reinforcement along the fiber direction. Engineers can orient the material to match the principal load path, helping achieve the required structural performance with less unnecessary material.
2. Lightweight Composite Design
Carbon fiber offers a high strength-to-weight ratio compared with many conventional engineering materials. UD prepreg enables lightweight laminate designs for applications where mass reduction and structural efficiency are important.
3. Controlled Resin Distribution
Pre-impregnation allows resin content to be specified and controlled within an agreed production tolerance. Consistent resin distribution supports repeatable laminate fabrication when material storage, layup, consolidation, and curing are properly managed.
4. Flexible Laminate Design
Multiple UD prepreg plies can be arranged at different fiber angles to meet specific loading requirements. Common orientations include 0°, 90°, +45°, and −45°, although the appropriate stacking sequence depends on the component design.
5. Compatibility with Composite Manufacturing Processes
Depending on the resin system and material specification, carbon fiber UD prepreg can be used in vacuum bagging, autoclave curing, and other qualified prepreg molding processes. The recommended process must match the resin's curing profile and the manufacturer's technical data sheet.
6. Custom Material Specifications
Fiber type, fiber areal weight, resin system, resin content, material width, and roll length can be discussed according to project requirements. Customized specifications should be confirmed before sampling or bulk production.
How to Select the Right Carbon Fiber UD Prepreg
Choosing the right material requires more than comparing price per roll. Buyers should assess the following factors before requesting samples or a quotation.
1. Define the mechanical requirements.
Identify the primary load direction, target stiffness, strength requirements, component weight, and expected service life. These requirements determine the necessary fiber grade and laminate architecture.
2. Select the fiber areal weight.
Fiber areal weight affects the amount of reinforcement in each ply and the laminate's thickness after consolidation. The appropriate value depends on the required laminate design and the available material specifications.
3. Confirm the resin system.
The resin must match the intended curing process, operating temperature, chemical exposure, and production cycle. Epoxy systems are commonly used, but different formulations can have significantly different processing and performance characteristics.
4. Establish the resin content.
Resin content influences consolidation, laminate mass, fiber volume fraction, and final mechanical performance. The acceptable range should be established for the specific product and process.
5. Check processing requirements.
Confirm storage temperature, out-time, shelf life, layup procedure, vacuum requirements, curing temperature, pressure, and post-curing requirements where applicable. Follow the technical data sheet for the selected material.
6. Request technical documentation and samples.
Before volume purchasing, review the technical data sheet, available test reports, batch identification, and quality documentation. A trial laminate or prototype can help verify compatibility with the intended production process.
FAQ
Q: What is carbon fiber unidirectional prepreg used for?
A: It is used to manufacture composite components that require directional reinforcement, high stiffness-to-weight efficiency, and controlled laminate construction. Applications include selected industrial structures, robotic components, sporting goods, and advanced composite parts.
Q: Is carbon fiber unidirectional prepreg available with epoxy resin?
A: Epoxy is a common resin option for carbon fiber prepreg. However, the actual resin system, curing requirements, and availability must be confirmed for the selected product.
Q: Can carbon fiber UD prepreg be customized?
A: Customization may include fiber grade, fiber areal weight, resin content, resin system, width, and roll length. Available options depend on the manufacturer's production capabilities and the technical requirements of the project.
Q: What curing process is required for UD carbon fiber prepreg?
A: The process depends on the resin formulation. Some materials are designed for autoclave curing, while others may support vacuum-bag or alternative qualified molding processes. Always follow the specified temperature, pressure, and curing cycle.
Q: How do I request a quotation for carbon fiber unidirectional prepreg?
A: Provide the required fiber type, fiber areal weight, resin system, resin content, width, roll length, application, and estimated quantity. If you do not have a complete specification, share the intended component and manufacturing process so the requirements can be reviewed.
